Flash dryer

Flash dryer

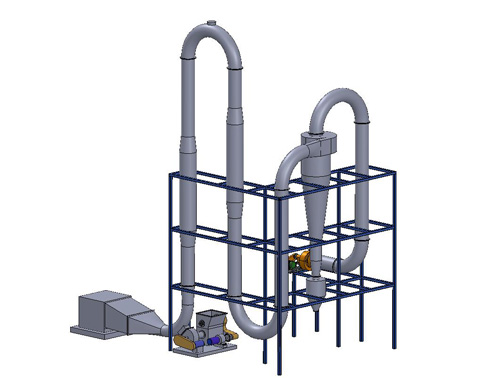

This device is made of drying tube, exchange heater, draught fan, rotary valve, feed machine, elevator, cyclone separator and so on.



Application fields:

Used for starch drying.



Working principle:

Draught fan start, get into air hose by the hot air of exchange heater, meanwhile, dried materials were conveyed to air hose by feed machine and elevator, under the function of heat exchange, water leave starch granule, discharged to outdoor by draught fan, drying starch is collected by cyclone separator, and put into hopper, discharged by air.

Equipment characteristic Technical parameters

1、Purpose is starch and protein dryer

2、Negative pressure structure, short drying time, low temperature

3、Automatic temperature control

Type

DG0.6

DG0.8

DG1.2

DG1.6

DG2.5

DG3.2

DG4

DG5

DG6

Capacity(t/h)

0.6

0.8

1.2

1.6

2.5

3.2

4

5

6

Wet starch moisture

<38%

Dry starch moisture

12-14

Motor(kw)

17.3

23.1

26.6

39.6

63

73

77

104

122.5
